Lab 3: Meshtastic

Part 0: Setup

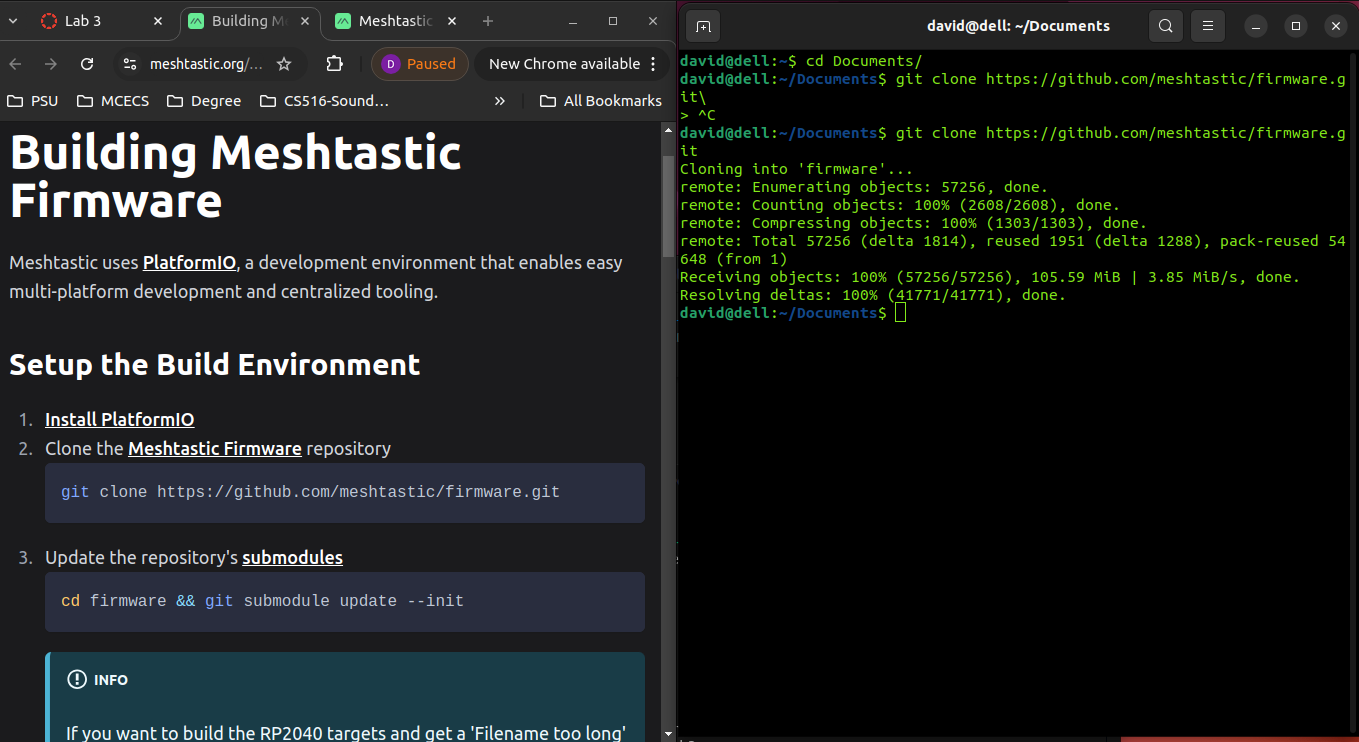

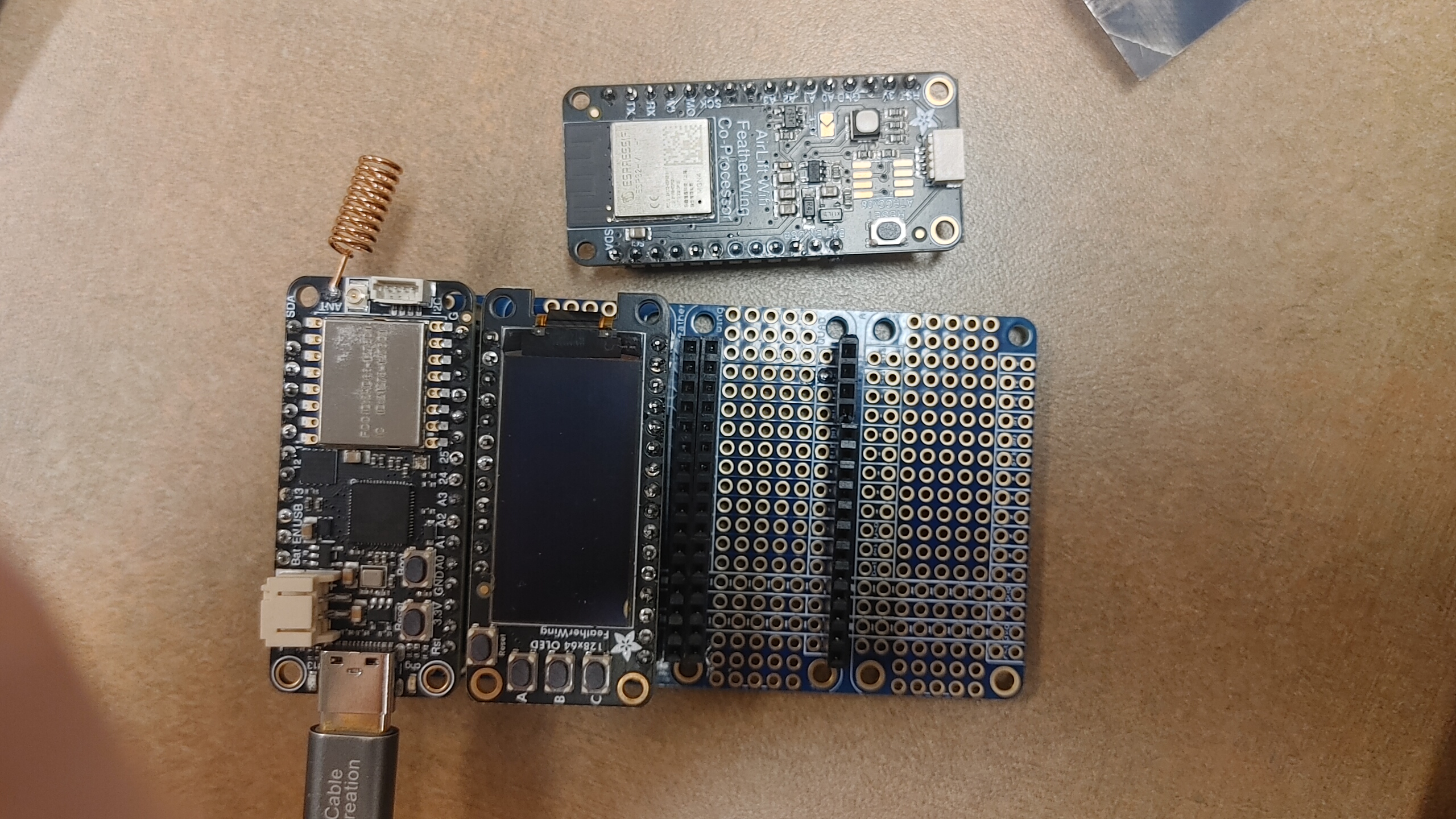

To prepare for this lab, I have cloned the provided meshtastic firmware repo, and removed the ESP32 feather from my board

1.png 2.jpg

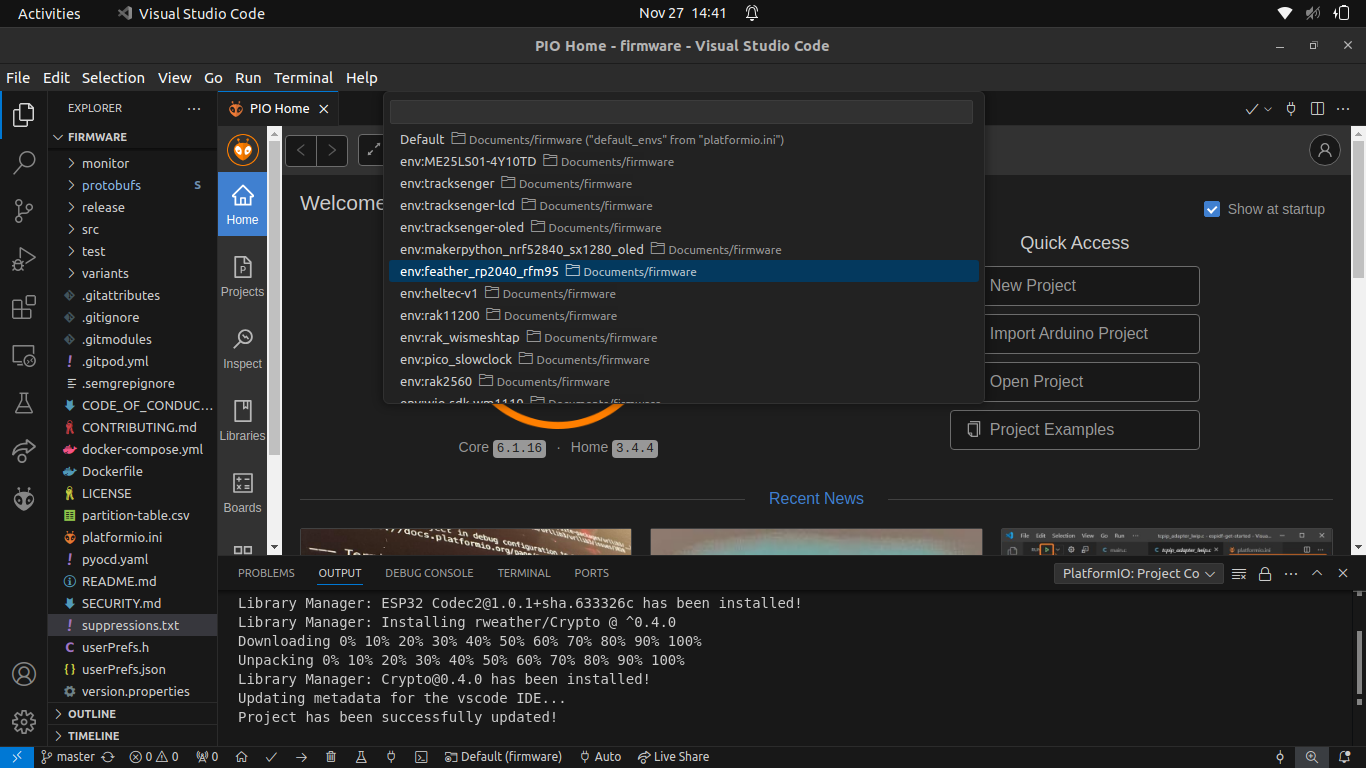

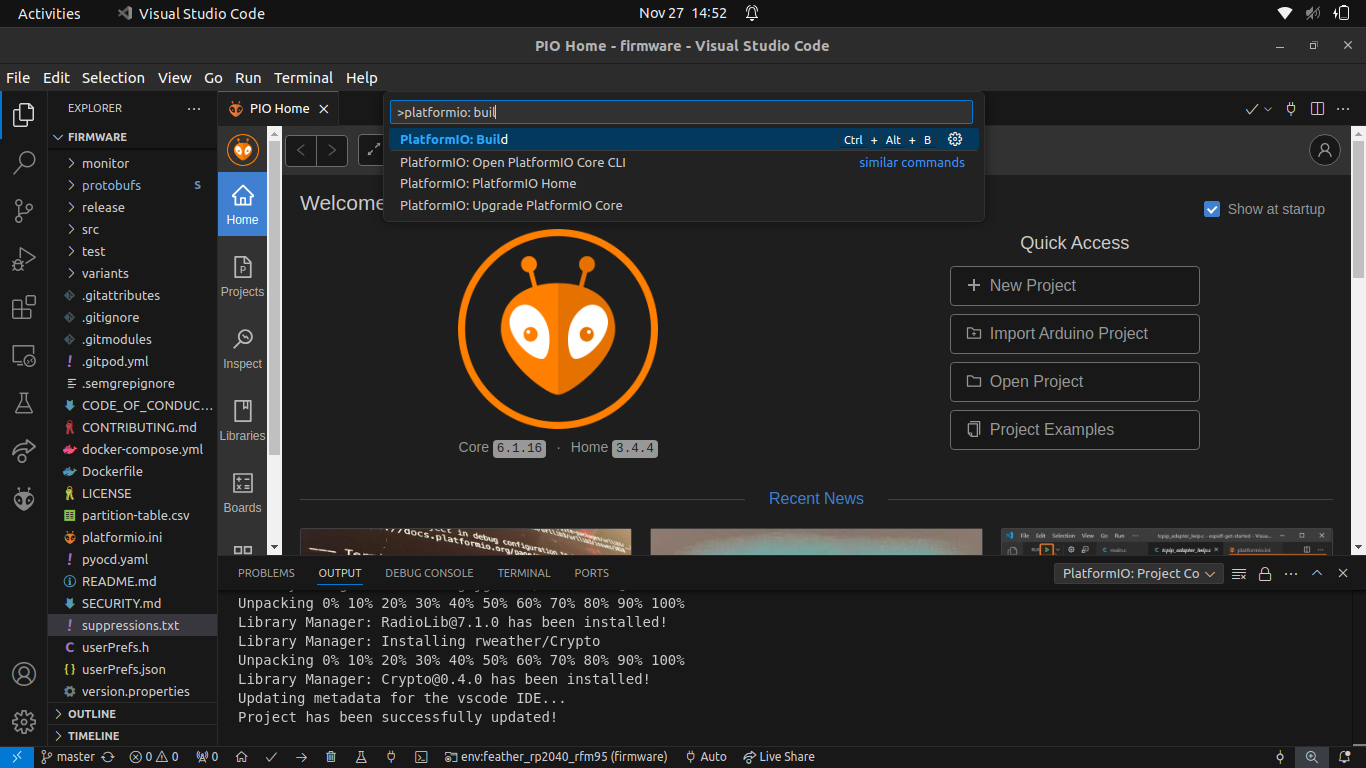

Then, I continue to follow the instructions for downloading and building the firmware using Visual Studio Code and the PlatformIO Plugin

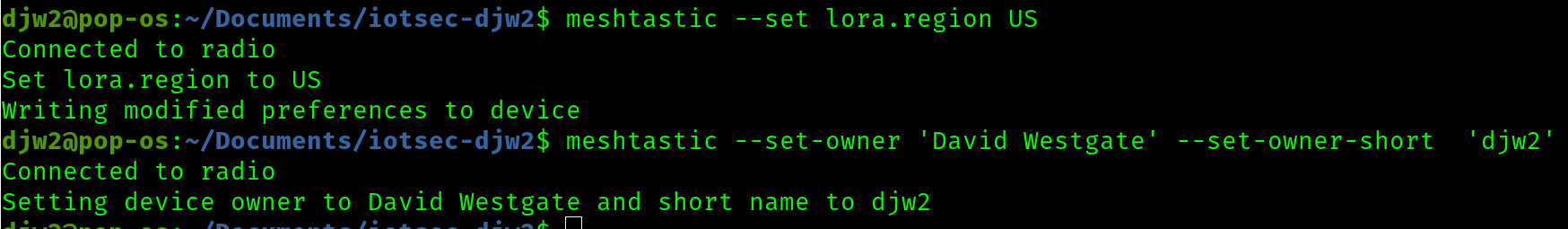

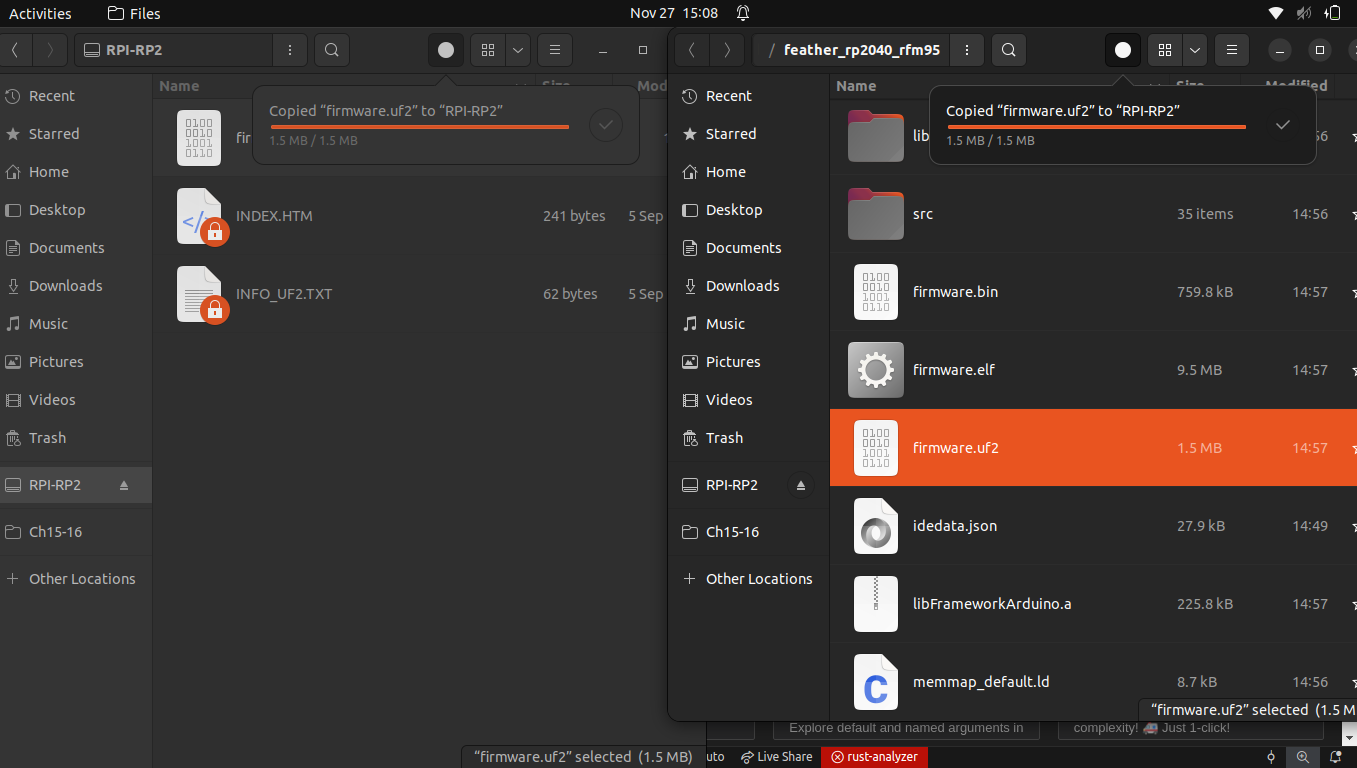

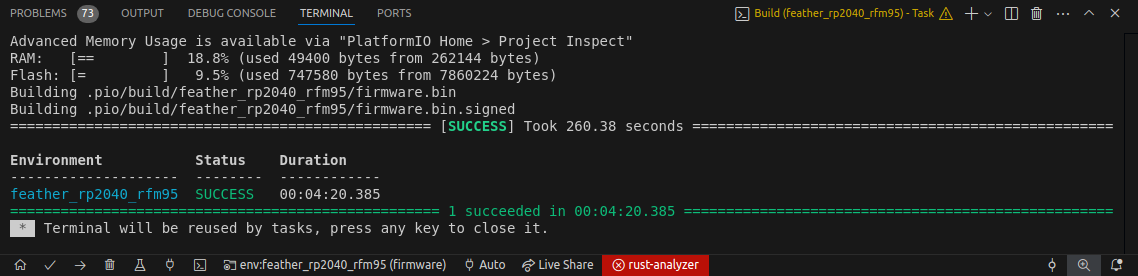

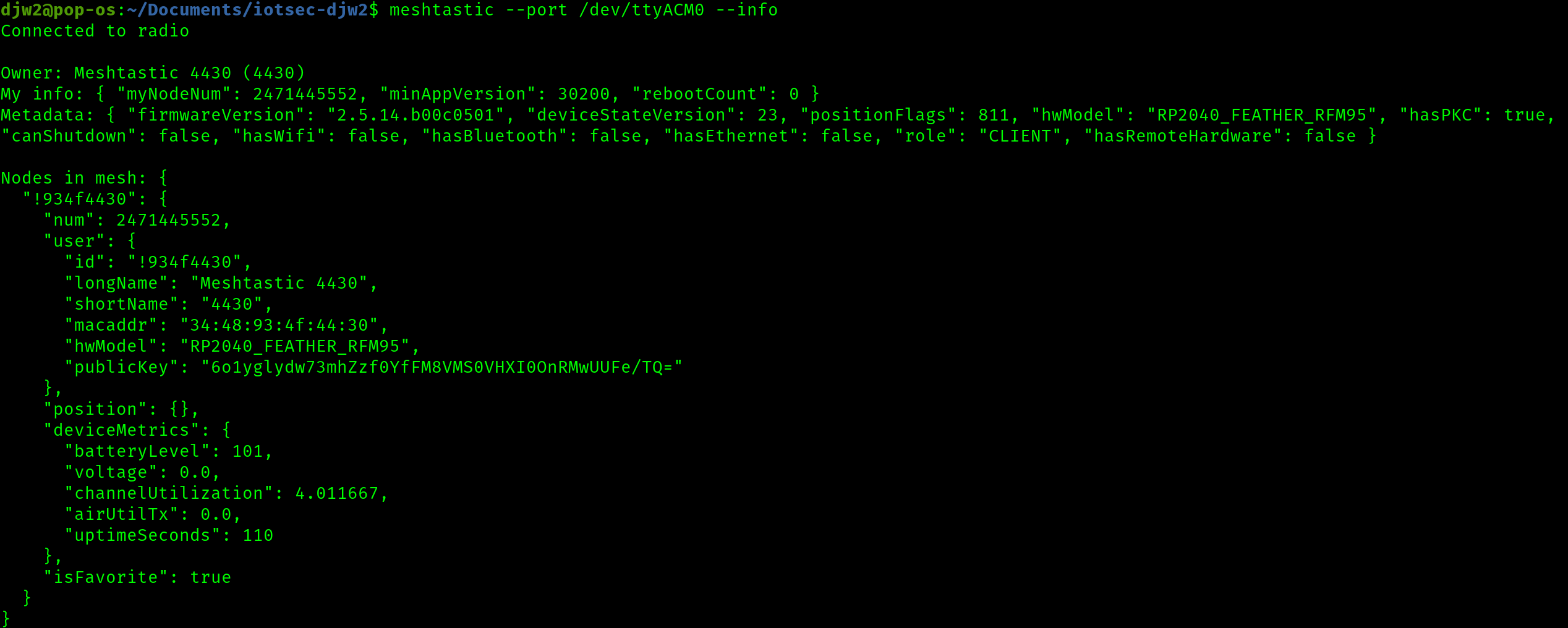

3.png 4.png 5.png The firmware building was successfull. Then end result is a uf2 file which I can flash onto the RP2040 (after starting it in boot mode) 6.png At this point, things looks good. I am able to use the meshtastic python application to get info from the RP2040 7.png I then set the region to US as well as my owner and node name 8.png
