Homework 5: Fuzzing
Prelude

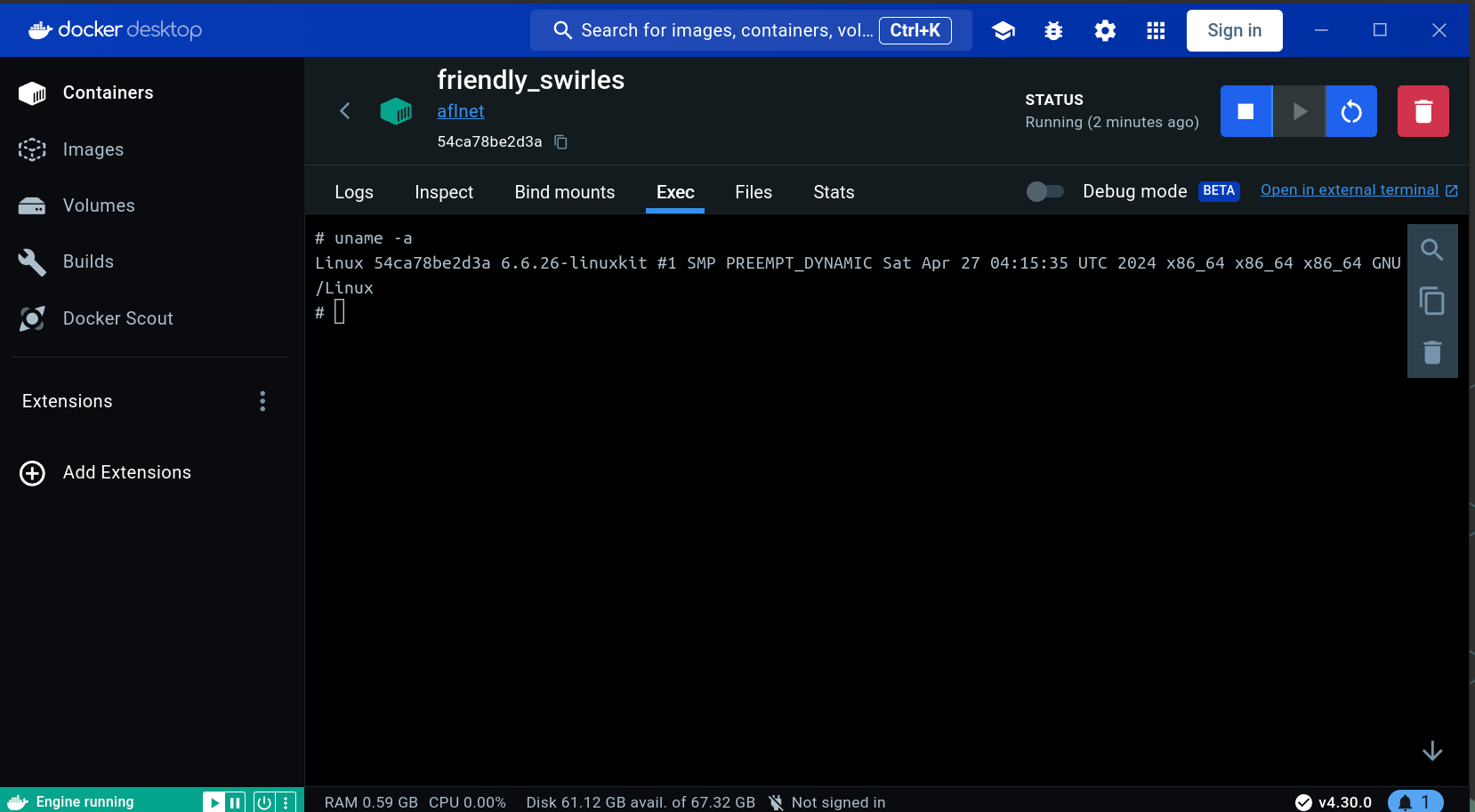

The first step I took for this asignment was setting up the docker container. This was straightforward with the provided instructions
Step-0
Here, I have followed the instructions the run the sample RTSP client and server

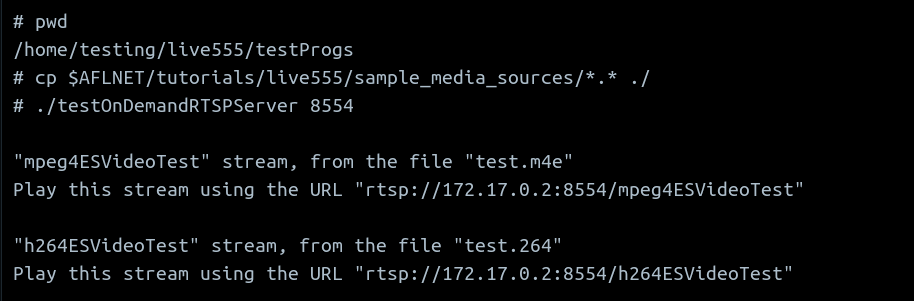

The server running is shown here

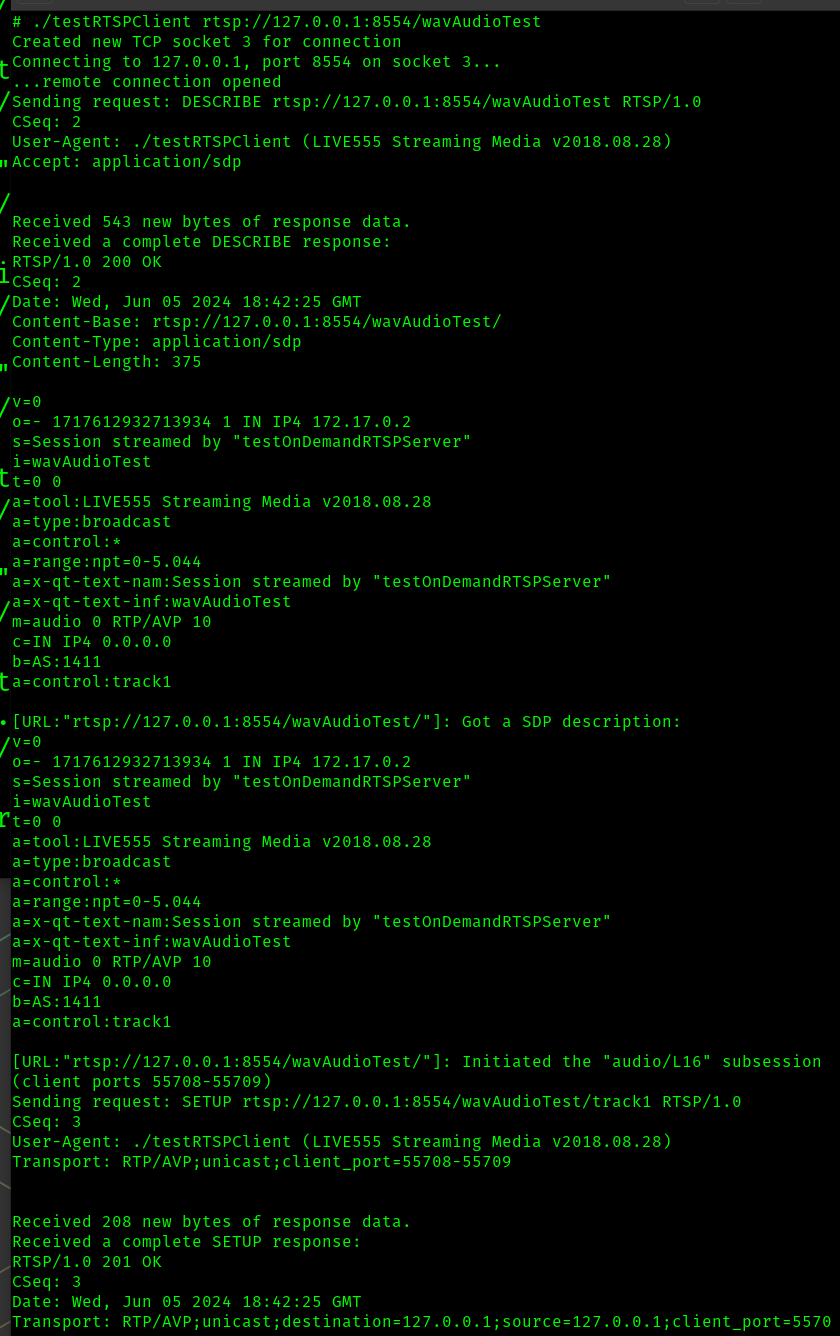

In another terminal, we run the sample client
Step-1. Prepare message sequences as seed inputs

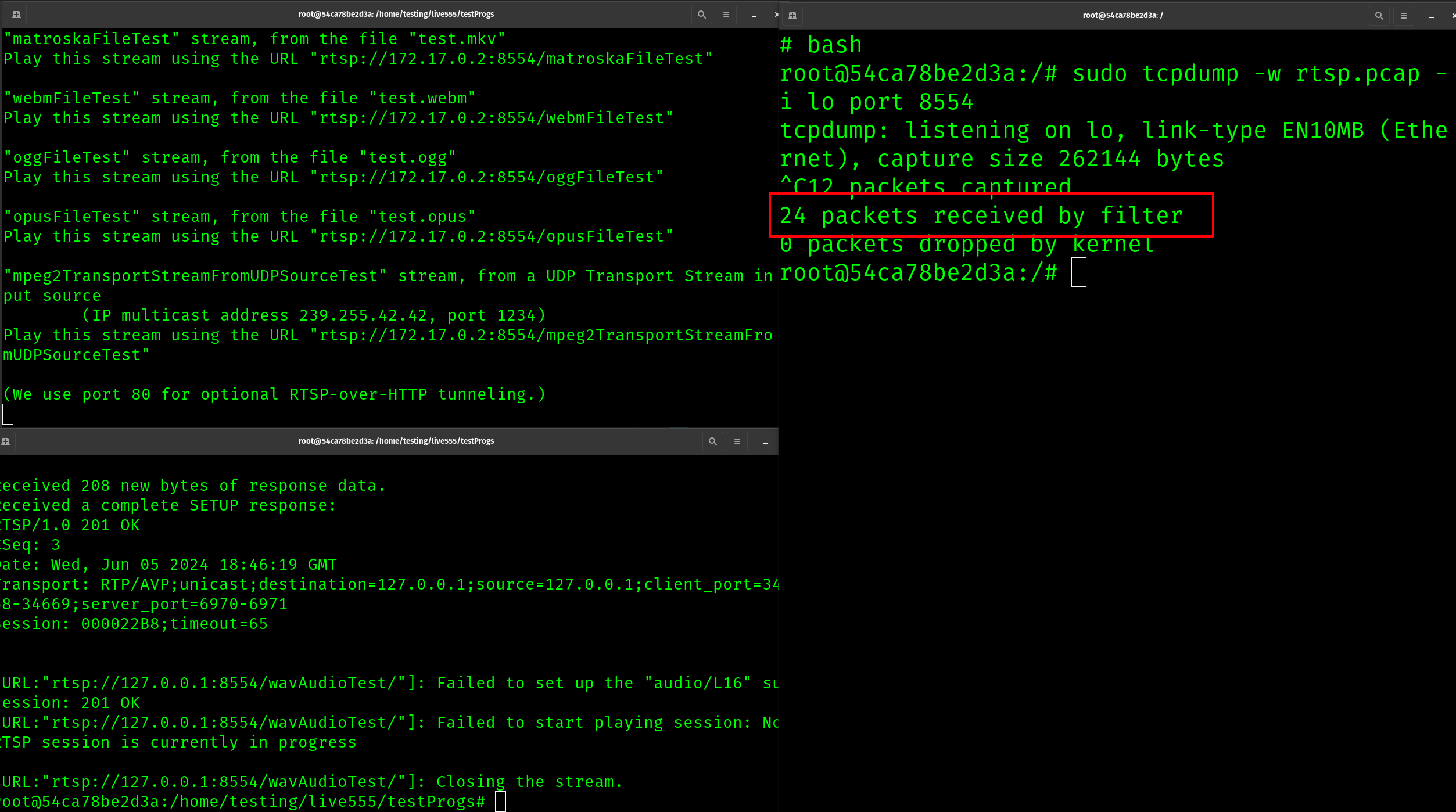

At this point, we have the server and client running. The next step is to install TCP dump, and open it up on a 3rd terminal window. We can now restart the client and capture some traffic
As we can see, with this approach we have captured 24 packets
Using docker cp I have copied that file rtsp.pcap to my local machine, and also have included it at ./rtsp.pcap

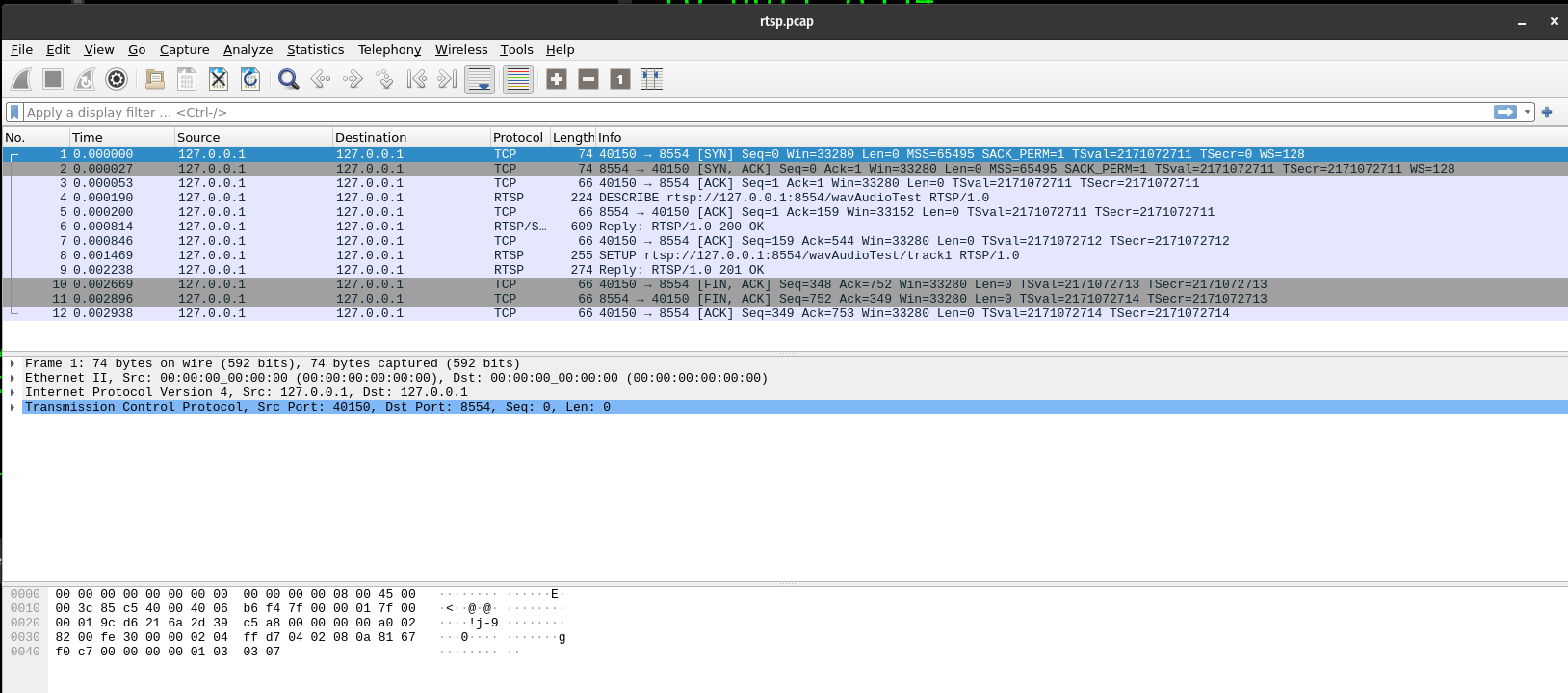

Lets take a look at this file with wireshark rtsp.pcap
Following the instruction, we can save the raw TCP stream of the request messages to rtsp_requests_wav.raw
Step-3 Fuzzing

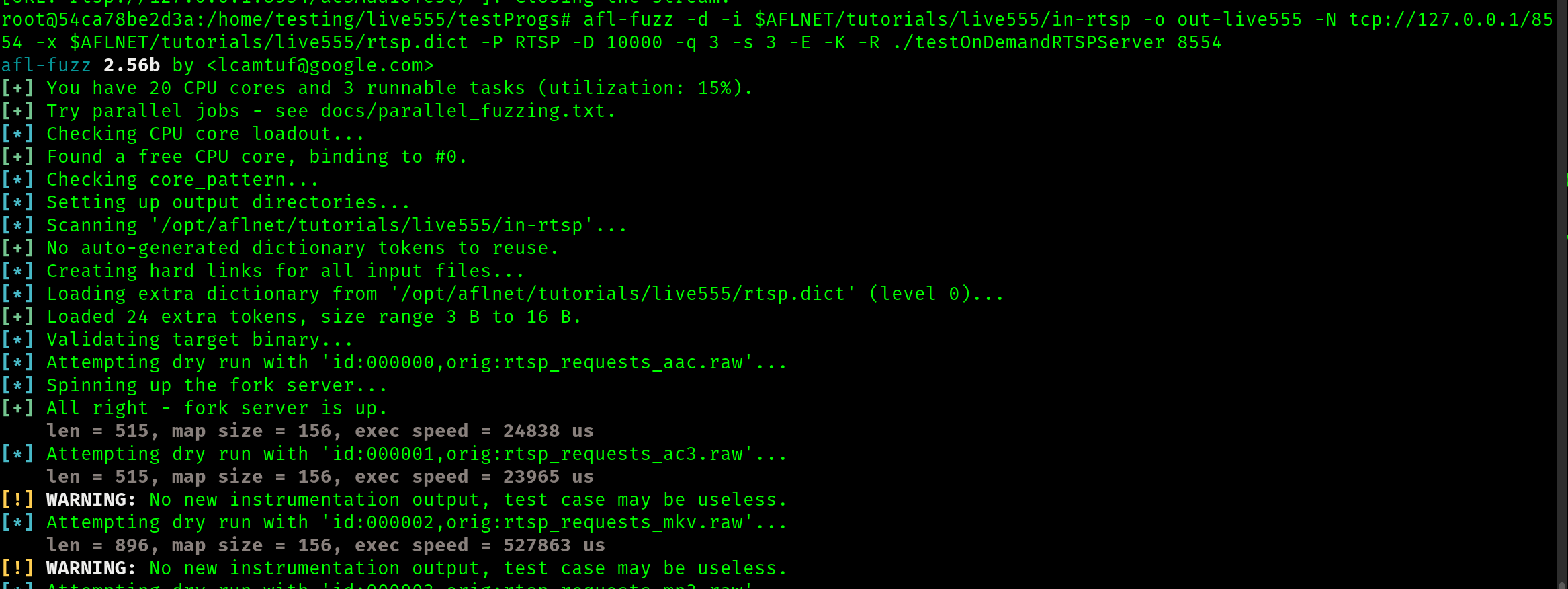

We begin the fuzzing process running the supplied command
afl-fuzz -d -i $AFLNET/tutorials/live555/in-rtsp -o out-live555 -N tcp://127.0.0.1/8554 -x $AFLNET/tutorials/live555/rtsp.dict -P RTSP -D 10000 -q 3 -s 3 -E -K -R ./testOnDemandRTSPServer 8554

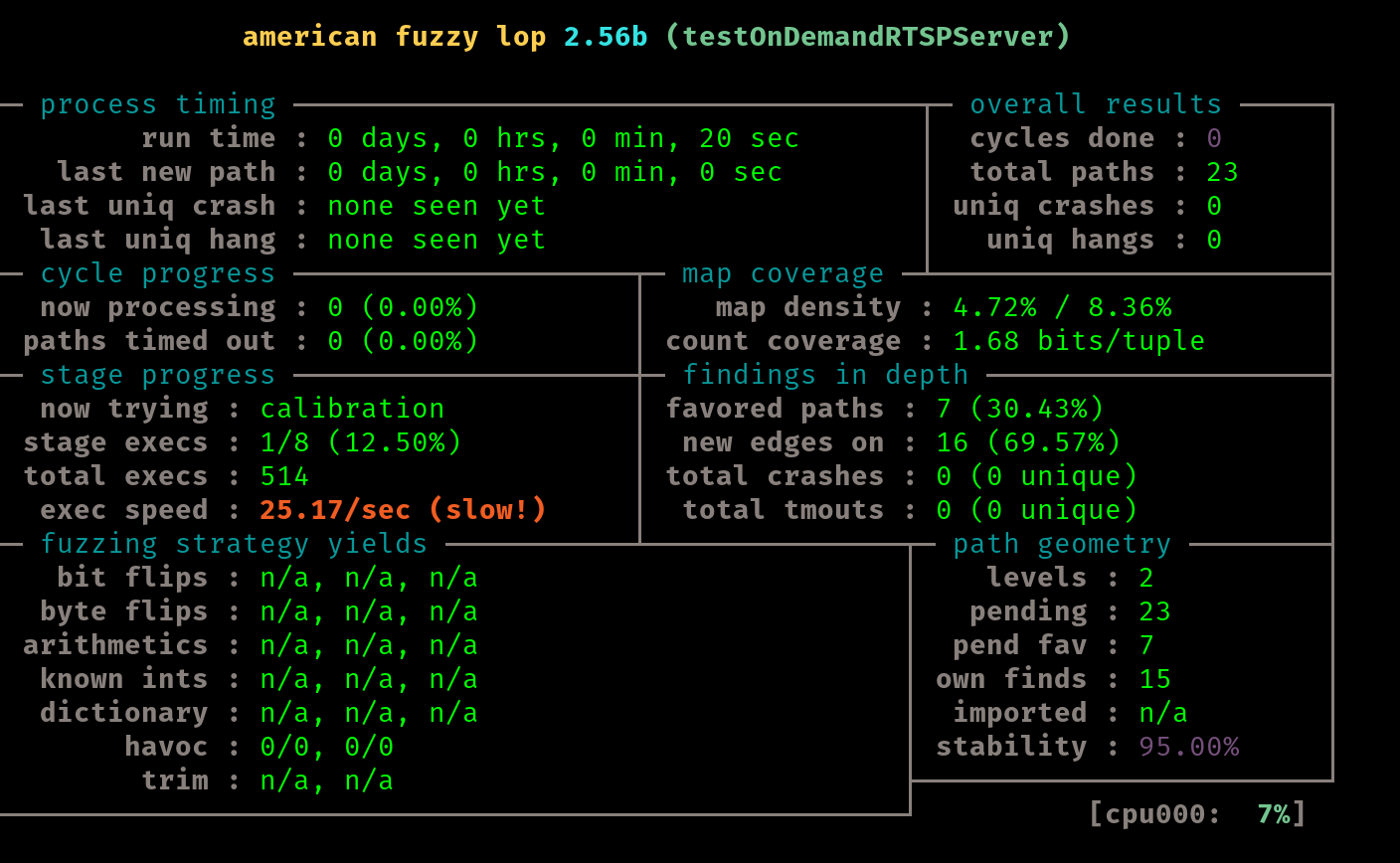

It seems off to a good start, and I will let this run for some time and check back later. In this case, I will use the provided seed corpus.
